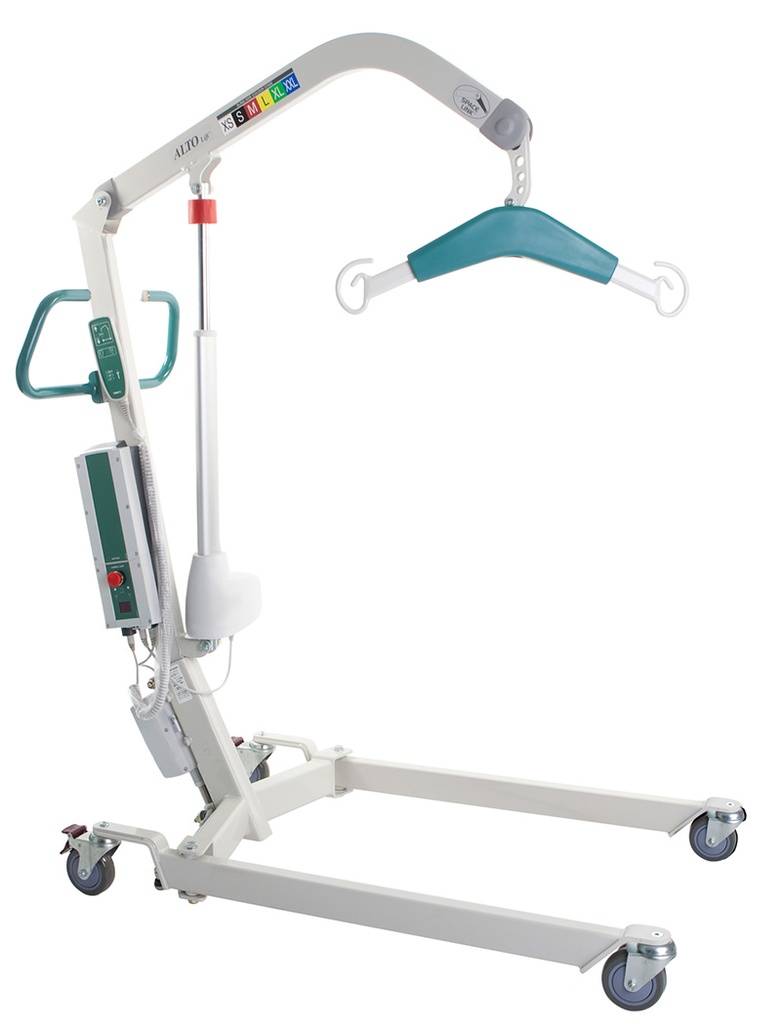

The Alto Client Lifting Hoist is a heavy-duty mobile hoist built for hospital, residential and community care, ideal for transferring clients from bed to chair or toilet. Compatible with a full range of slings from extra small to XX-large, it has a safe working load of 200kg and is proudly made in Australia.
Yokes and spreader bars are sold separately. The yoke shown in the main hoist image is for illustrative purposes only.
- The Alto is ideal for transferring from bed to chair or toilet
- Complemented by a full range of client slings, covering all sizes from extra small to XX large
- Suits Loop, Pivot and Pivot Care E-Clip slings
- Compatible with standard spreader bar or tilt/pivot frame
- With a small footprint, coupled with light weight, the Alto is highly manoeuvrable
- Options: Tilt Pivot Frame, 4-point Yoke, Scales (integrated or supplied as an optional extra with conversion kit)
- Australian made
- Base Length: 115cm
- External Base Width Closed: 70cm
- External Base Width Open: 113cm
- Internal Base Width Closed: 60cm
- Internal Base Width Open: 103cm

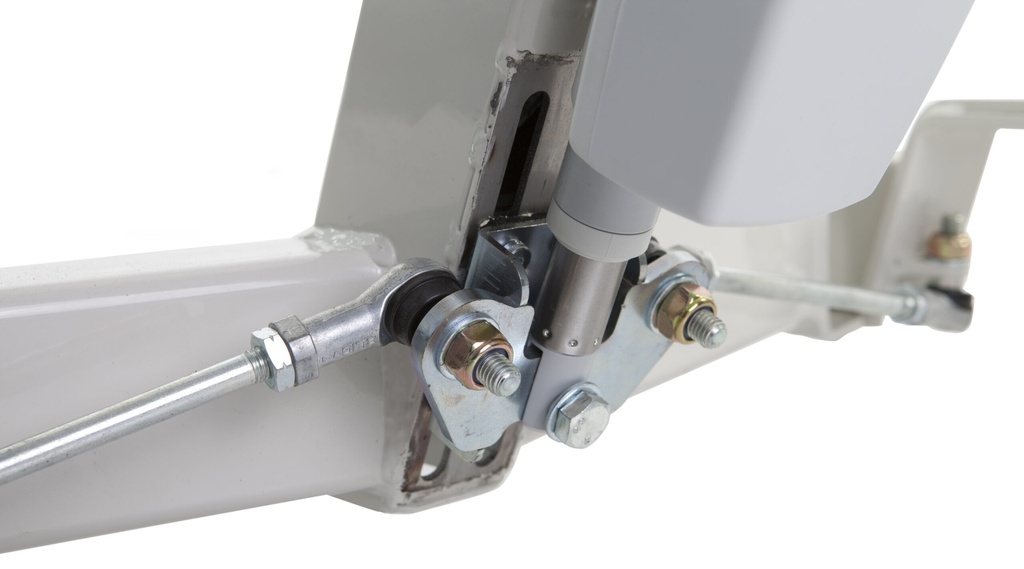

- Base Width Adjustment: Electric
- Under Bed Clearance: 13cm
- Minimum Height Yoke: 30cm
- Maximum Height Yoke: 192cm
- Average Lift Range: 162cm (with general purpose large sling)
- Lifter Weight: 46kg
- Minimum Storage Height: 135cm
- Under Base Height: 5.5cm
- Maximum Hoist Reach: 106cm
- Minimum Hoist Reach: 61cm
- Hoist Reach at Maximum Height: 51.5cm
- Mass of Heaviest Part: 24kg (Mast assembly)
- SWL: 200kg
