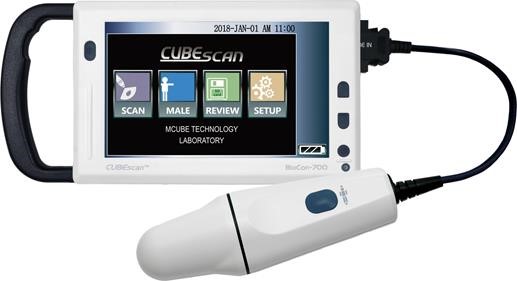

The BioCon-700 is a portable non-invasive ultrasound system intended to measure the volume of urine in a patients bladder.
- Real-time Pre-Scan function locates the bladder prior to scanning and improves the accuracy of results.
- Easy-to-use 7-inch LCD colour touch screen for quick access.
- Immediate printout of results via the internal printer, or use the included CubeScan PC software to upload saved data to a computer for later review.
- Compact, lightweight, hand-held device with a long-lasting internal rechargeable battery allowing for use in all locations.
- 3 year warranty with 5 year option available
Product Specifications
- Display – 7″ TFT-LCD (WVGA), 16.7M colors (Color Touch Screen)
- Volume Range – 0~999ml, Accuracy: 15%,15ml(0-999ml)*1)
- Printer – Built-in (50mm width) thermal printer
- Scan Time: 5 secs
Ultrasound Probe:
- 3D Sector Scan
- 2.6MHz ultrasound frequency
- B-Mode Scan
- Scan Angle: 120
Power
- Rechargeable Li-ion battery
- Nominal voltage: 7.4V
